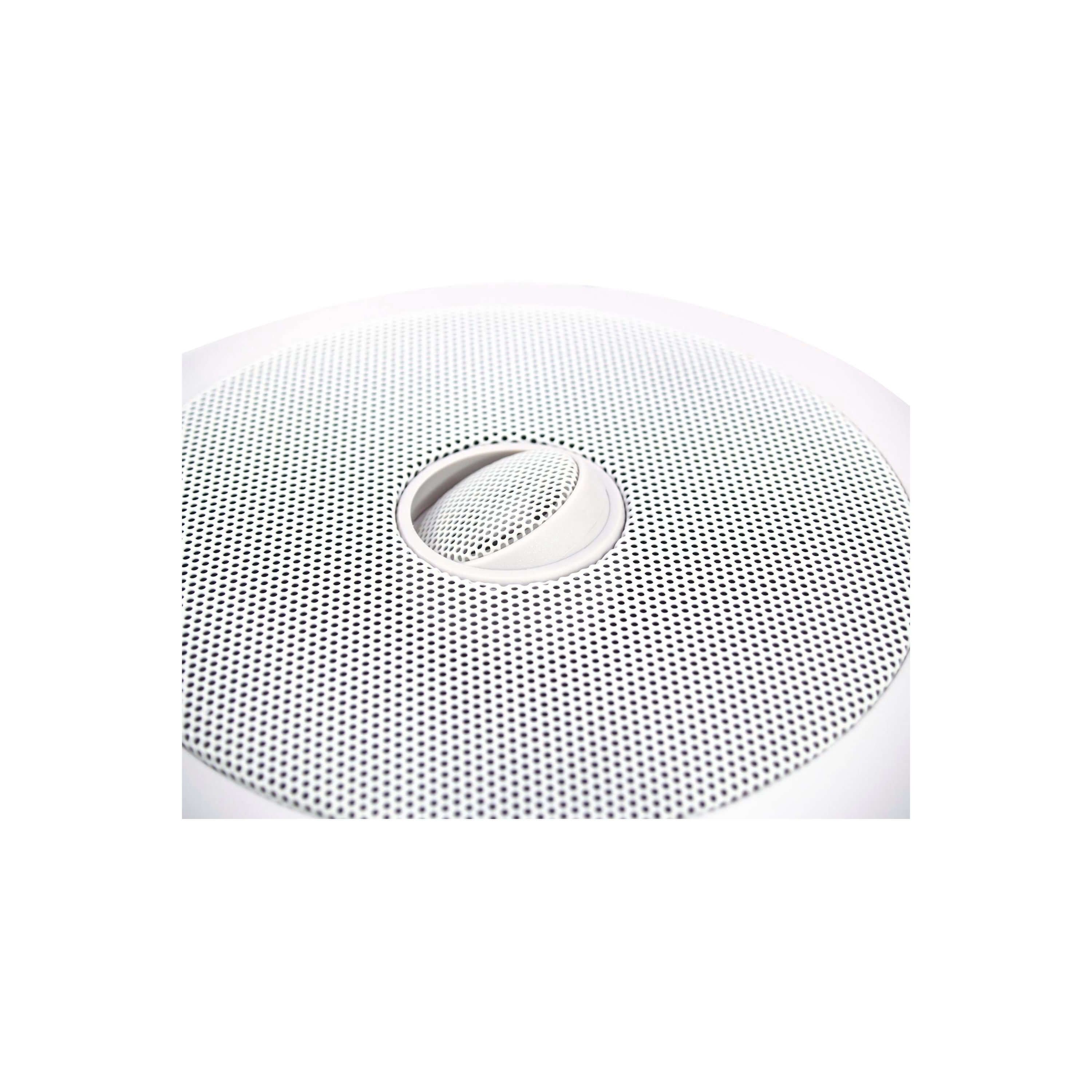

CST-8 2-way 100V built-in loudspeaker
Details
CST-8 2-way 100V built-in loudspeaker
The CST-8 recessed box is a speaker for false ceiling installation, for 100 volt systems with 8-inch woofer and 0.5-inch tweeter. CST-8 has the possibility of being connected in three different wattage modes: 10 watts, 20 watts, 40 watts, to adapt to multiple applications. The installation is very simple thanks to the fixing clips. Its main applications in offices, waiting rooms, restaurants, shopping malls and shops. CST-8 is the perfect speaker for any situation where diffused background music is needed. 100 volt in-line systems are widely used in environments where multiple speakers are required. The main advantages of distributed loudspeaker systems are many, in fact for these systems it is not necessary to make complicated calculations of total impedance between the loudspeakers, but it is sufficient to add the wattage of each single loudspeaker. For this it is possible to connect many loudspeakers to a single amplifier. In addition, the system, if the amplifier allows it, can be easily expanded by adding additional speakers. The volume of each speaker can be adjusted independently thanks to the different types of connections on each speaker. Wiring is much simpler and smaller wires can be used because the speakers use less current. Last quality is that you can use very long cables (up to 100 meters), as the loss of signal line is negligible.
Technical specifications
- Input voltage: 100V
- Output: 10W RMS (Green) 20W RMS (Yellow) 40W RMS (Red) COM (Blue)
- Sensitivity (1W/1m): 87dB ±3dB
- Max. SPL (1m): 101db
- Frequency range: 50Hz - 20kHz
- Dimensions (DxW): 270 x 105 mm
- Mounting hole : 24mm ø
- Degree of protection : IP20
- Weight: 2.2kg
