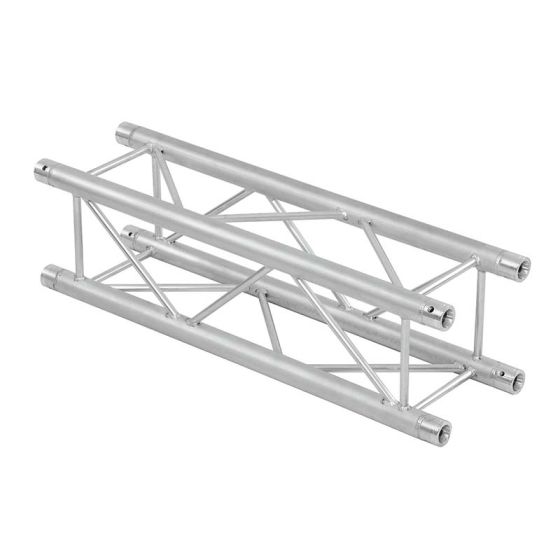

Alutruss Quadlock QL-ET34 4 vie | 2 m

Two-metre 4-way truss

The Alutruss Quadlock QL-ET34, in this two meter long version, is a 4-point aluminum truss system . The individual elements are connected via four cones, pivots and pins. QUADLOCK QL-ET34 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads.

The advantage of the conical connection system is that the cones are fully inserted into the main strings in order to guarantee maximum load capacity. The Quick-Lock system allows fast, efficient and highly aesthetic assembly when truss constructions are erected and disassembled frequently.

The four main strings are made from 50mm aluminum tube with 2mm wall thickness and offer a good strength to weight ratio. The posts are 20mm in diameter with 2mm wall thickness and provide stability to this truss system.

With external dimensions of 290 mm, QUADLOCK QL-ET34 is a stable truss system for higher loads and a long service life. This system is mainly designed for heavy use in stage installations , fairground installations, event installations but also for permanent installations in discotheques and theatres.

Features Alutruss Quadlock QL-ET34

• Robust EN-AW 6082 alloy for high loads
• High quality aluminum tubes with 50mm diameter
• Easy installation
• Low weight
• Distance center - center: 240 mm
• For exhibition and shop installers, discotheque and theater installations
• 1 x connection set included
• Trusspipe: 50mm
• Length 2 meters

Technical specifications Alutruss Quadlock QL-ET34

• Trumpet : 50 mm x 2 mm
• Welding technique : TIG welding
• Welding material : AlMg 5
• Alloy : AIMgSi1 T6
• Color : Colored aluminum
• Strut diameter x thickness : 20 x 2mm
• Length : 2m
• Width : 29cm
• Height : 29cm
• Weight : 11.2kg
