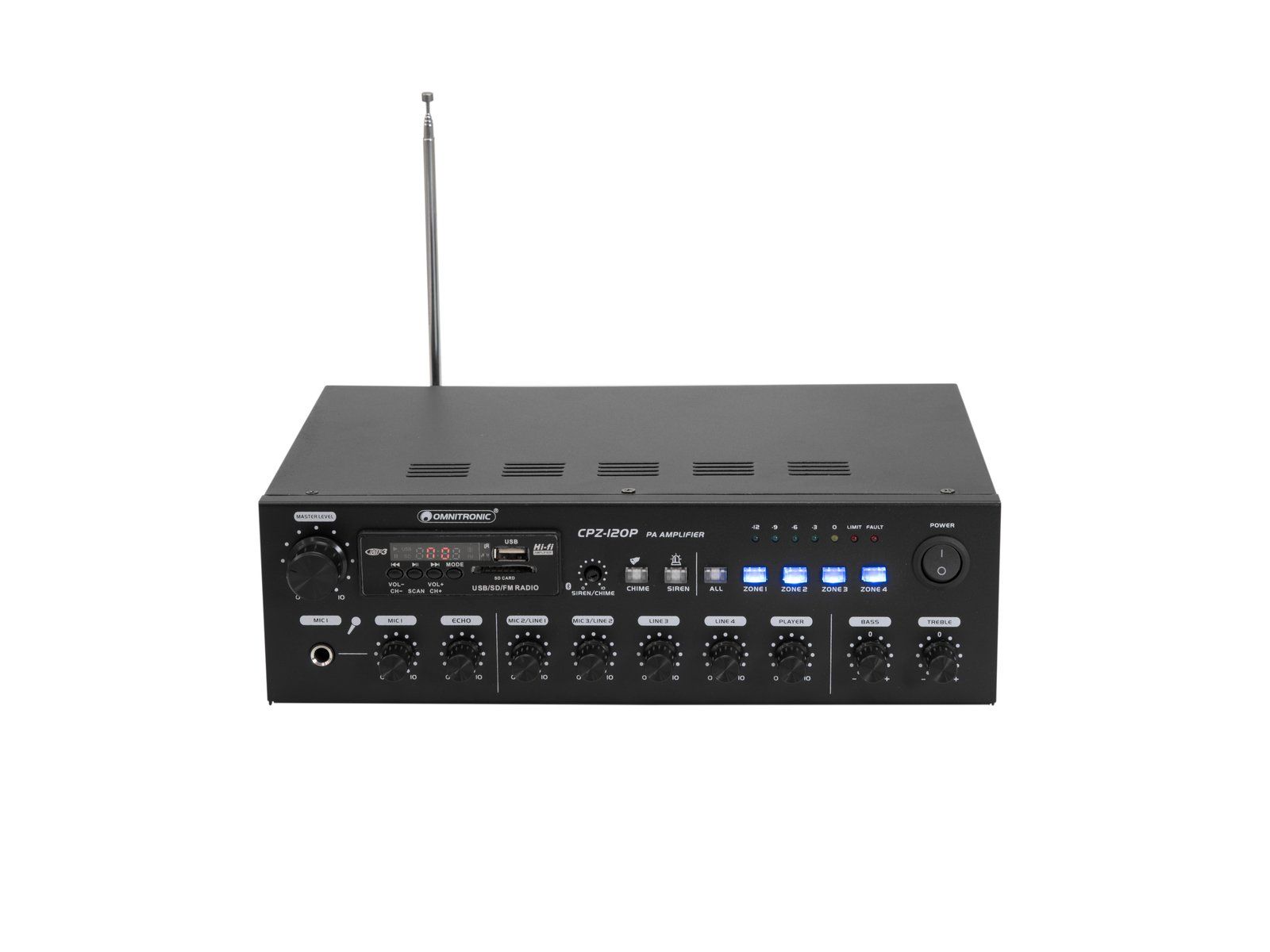

Omnitronic CPZ-120P Amplifier

Omnitronic amplifier CPZ-120P

The Omnitronic CPZ-120P is a 4-zone mono amplifier with MP3 player and Bluetooth . Furthermore, this amplifier is ideal for commercial establishments and applications that need the possibility of receiving signals from different sources, it also offers an SD memory card slot , USB input and an FM tuner with automatic scanning.

Getting your voice heard throughout the venue is no problem thanks to 3 different microphone inputs with separate level controls.
Ease of use is guaranteed by the practical remote control and the LED front panel which makes all the information you need available at a glance.

Omnitronic CPZ-120P amplifier features

• 4 PA zone outputs, independently switchable on the front panel
• Main PA output (70V and 100V)
• Output for low impedance speakers (4-16 ohms)
• Built-in audio player with Bluetooth receiver and IR remote control
• Wirelessly stream music from your mobile devices (e.g. smartphone, tablet) via Bluetooth
• SD card slot and USB input
• FM tuner with auto scan
• 3 microphone inputs with separate level controls
• Mic 1 with phantom power, priority circuit and echo effect
• Mic 2 and 3 switchable mic/line
• 2 line inputs with separate level controls
• 1 line out
• Siren and ringer, adjustable
• Treble and bass and master controls for the output signal
• Level display with 5 LEDs
• Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
• Fan cooled
• Mains operation and 24V emergency power supply
• Compact table console
• Control via Bluetooth; IR remote control included
• 2 u

Technical specifications Omnitronic amplifier CPZ-120P

• Power Supply : 100-240V AC, 50/60Hz or 24V
• Power Consumption : 240W
• Output Power : 120W RMS
• Power connection : Mains input IEC connector (M) mounting version Power cord with safety plug included
• Battery : 1 x CR2025 button cell Built-in 3.0V CR2025 lithium manganese button cell
• Impedance : 1 x 4 ohms; 1 x 8 ohms; 1 x 16 ohms; 1 x 100V public address systems
• Control : Bluetooth; IR remote control included
• Audio Player : USB + SD + Bluetooth + FM Radio
• Zone output : 4 switchable zones
• Circuit : Class D
• Equalizer : Master: 1 2-band tone control
• Connections : Input: 1 x microphone via 3-pin XLR
• Input : 2 x microphone/line via 6.3 mm jack socket (stereo) mounting version
• Input : 2 x line via stereo RCA
• Output : 1 x line via stereo RCA 0.774V
• Output : loudspeakers via screw terminal
• Format : MP3
• Housing Design : 2U
• Width : 30.3cm
• Depth : 22cm
• Height : 9.1cm
• Weight : 3.95kg
