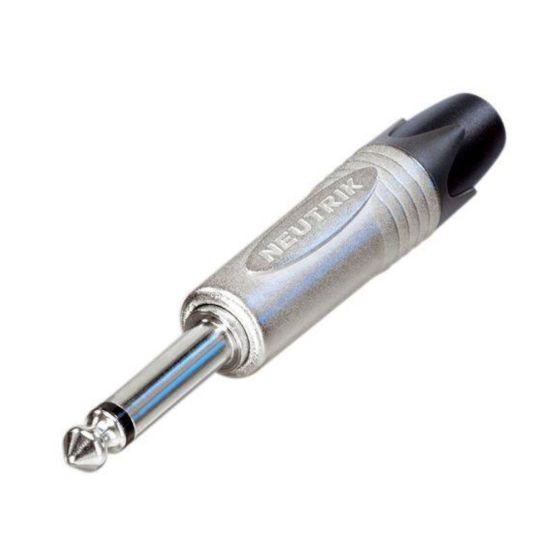

Neutrik Jack Mono Np2X connector

Neutrik chromed NP2X 2-pole Jack 6.35 mono male connector.
1 year Warranty

Do you need help?

Contact our support team!

Professional Neutrik 2 Pole mono jack connector

Professional 1/4" cable connector, 2 pole, brass contacts, nickel chassis. The NPX series are heavy-duty professional jacks slim 1/4" plug connector with Neutrik's unique strain relief. The slim shell with a width of 14.5mm meets the latest requirements for most closely spaced jack inputs. The precise contact of the tip in one piece machined without rivets makes it unique and guarantees the connection in a safe jack socket or the impossible breaking of the tip. The Plug X series applies all needs such as guitar, audio cables, speakers, amplifiers and mixing desks.

Characteristics

  • 1/4 "extra slim" jack connector
  • The terminal with polyurethane cable gland offers high protection from the stresses caused by the bending of the cable
  • Mandrel strain relief offers increased pulling force and makes assembly easier and faster
  • Rugged die-cast zinc shell, durable and reliable
  • Precision machined one-piece contacts to avoid contacting conductors

    • Technical specifications

    • Resistance: Depends on mating connector mΩ
    • insulation: between >2 and ≥ 1 GΩ
    • Rated current per contact: depends on mating connector A
    • Rated Voltage: <50V
    • Contacts: Brass
    • Wiring: solder contacts
    • shell die-cast zinc nickel ion plating<\li>
    • Temperature range: -30°C to +65°C
