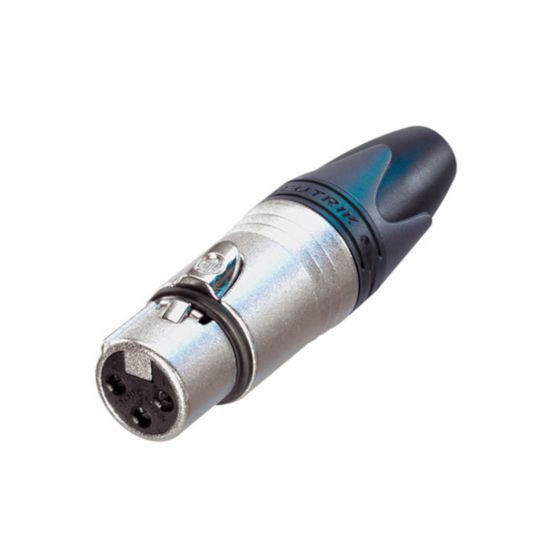

Neutrik Nc 3Fxx Female Xlr 3 Pole Connector

NC3FXX chrome Neutrik 3-pole XLR cannon female connector.
1 year Warranty

Do you need help?

Contact our support team!

Professional XLR 3 Pole Female Neutrik connector

3-pole female cable connector with nickel chassis and silver contacts. The standard for audio connections, extremely robust and reliable cable connectors with a precise locking system. NC3FXX connectors have solid contacts, are easy to mount, and improve contact integrity as well as cable strain relief.

Characteristics

  • Female connector with large and easy to handle solid metal latch
  • The terminal with polyurethane cable gland offers high protection from the stresses caused by the bending of the cable
  • Mandrel strain relief offers increased pulling force and makes assembly easier and faster
  • Rugged die-cast zinc shell, durable and reliable
  • The internal thread on the shell is well protected from damage

    • Technical specifications

    • Resistance: <3mΩ
    • Insulation: >10GΩ
    • Rated current per contact: 16A
    • Rated Voltage: <50V
    • Contacts: Bronze
    • Wiring: solder contacts
    • Locking element: Die-cast zinc
    • Nickel ion plating die-cast zinc shell
    • Flammability: UL 94 HB
    • Protection class: IP40
    • Temperature range: -30°C to +80°C
