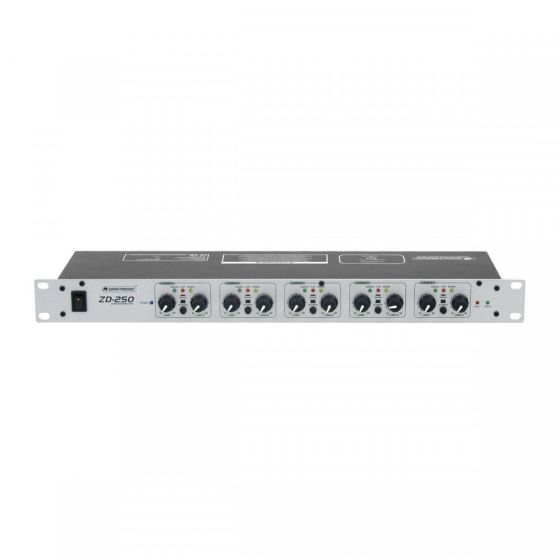

Omnitronic ZD-250 - 5 audio zone distributor

Zone distributor 2 IN and 5 OUT

The Omnitronic ZD-250 is a zone distributor with 2 stereo XLR inputs and 5 stereo XLR zone outputs each with level controls for both the inputs and the mono switch.

Omnitronic ZD-250 distributor features

• Extend any mixer with additional outputs
• 2 stereo XLR inputs
• 5 stereo zone XLR outputs
• Each zone with level controls for both inputs and mono switch
• LED display of signal input, distortion and mono/stereo mode
• Rack installation with 1U
• Power Supply: 230V AC, 50Hz
• Absorption: 7W
• Input Impedance: 45.1 kohms
• Max. input level: 9dB
• Output level: 22dB
• Output Impedance: 125 ohms
• Max. gain: 15dB
• Distortion: 0.2%
• S/N Ratio: 69dB

Omnitronic ZD-250 distributor technical specifications

• Power supply : 230V AC, 50Hz
• Power Consumption : 7.00W
• Power connection : Mains input via IEC connector (M) mounting version power cord with safety plug (included)
• S/N Ratio : >69dB
• THD : <0.2% at 1kHz
• Impedance: Input 45.1 kOhm
• 125 ohm output
• Gain : 15dB
• Maximum level :
  Input: +9dB
  Output: +22dB
• Color : silver
• Housing structure : (19") 48.3 cm 1U rack installation
• Width : 48.3cm
• Depth : 12.6cm
• Height : 4.45cm
• Weight : 2.35kg
