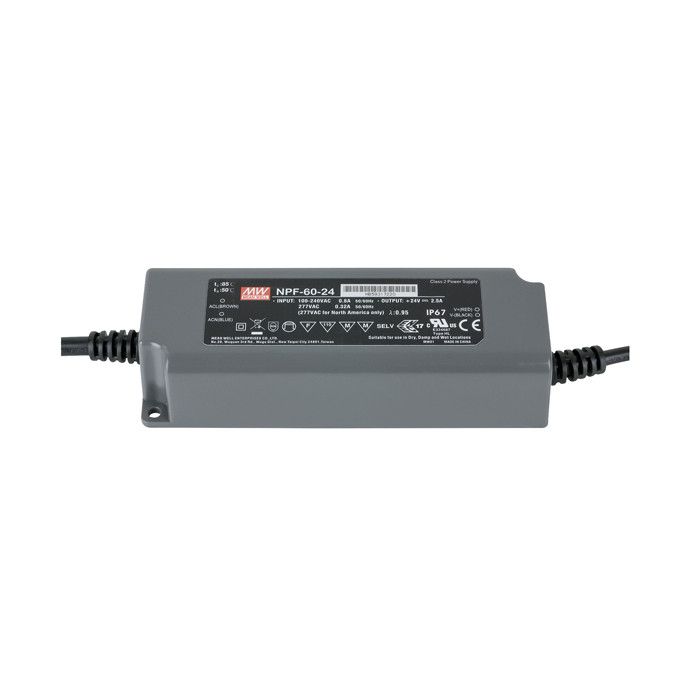

Meanwell NPF-60-24 LED strip power supply 60 W/24 VDC

The Meanwell NPF-60-24 is a LED power supply featuring two modes of constant voltage and direct current output. Thanks to the efficient fanless design it is able to work at temperatures between +70° and -40°C. Furthermore, thanks to the protection standard, it can be used outdoors in any weather condition.

Technical specifications Meanwell NPF-60-24

Electrical specifications and connections

• Power supply 90-305 VAC
• Output voltage 24 VDC
• Power Consumption 60W
• Output current (A) 2.5A
• Power connector in Open end
• Output power connector Open end
• Protection class II

Mechanical specifications

• Length (mm) 150mm
• Height (mm) 35mm
• Width (mm) 53mm
• Weight 0.49kg
• IP degree of protection IP67
• Housing Plastic
• Gray colour

Thermal specifications

• Maximum ambient temperature 70 °C
• Minimum ambient temperature -40 °C
