Eurolite Dmx Scene Setter 1224 mixer luci

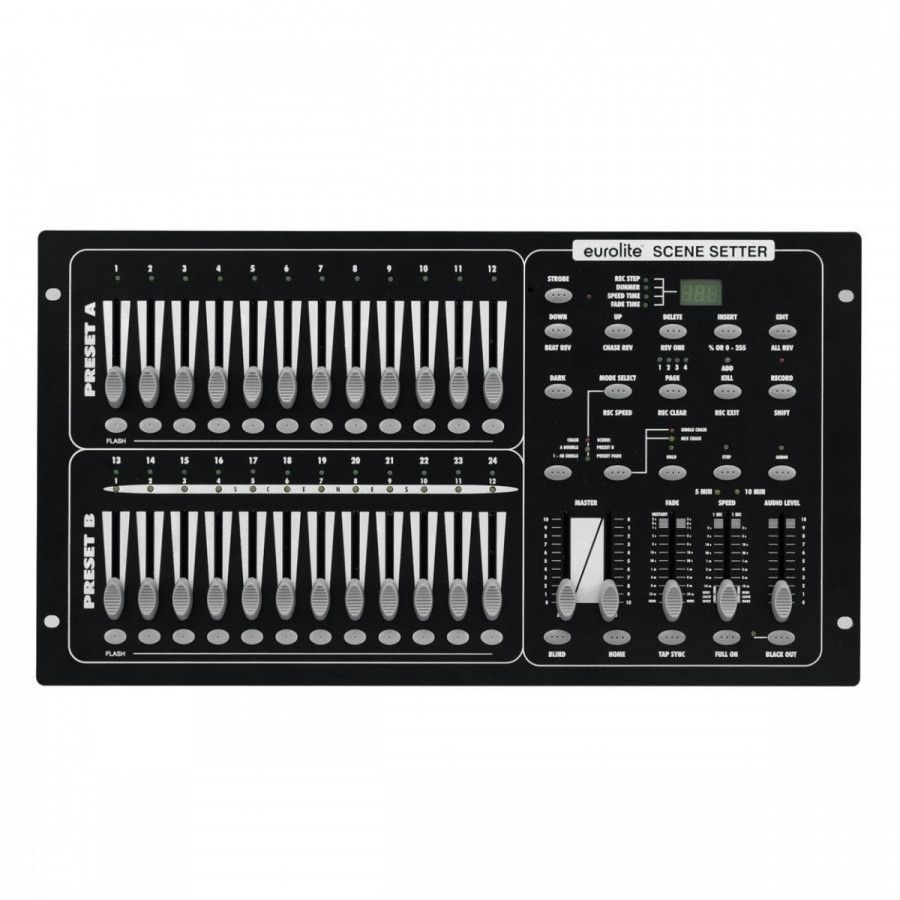

Eurolite Dmx Scene Setter 1224 Lighting Mixer.

Scene Setter Eurolite's 24-channel DMX controller allows you to easily create spectacular light shows by controlling any type of Dmx fixture and fixture. Through the 24 faders it will be possible to manage the intensity of the light and activate programs and sequences. This type of controller is particularly suitable for theatrical applications where fast control of each individual light fixture is very important.

Scene Setter Eurolite allows you to memorize 12 scenes and create sequences of 48 steps that you can also activate in time with the music. A simple and powerful controller capable of satisfying light designers of all skill levels.

Scene Setter Eurolite can be installed in a 19" Rack case occupying 6 units.

Characteristics

• Perfect for theater lighting with 24 DMX channels
• Total brightness control for each scene
• Call up twelve unique scenes directly from the faders
• Wide range of operating modes with Blackout, mix and single chase and blind/home functionality
• Compatible with standard MIDI
• Impeccable signal integrity from a 3-pole XLR connector with polarity selector
• Control everything via the optional foot switch
• Ideal for desktop use
• Easy to mount in any standard 19" rack unit with available space of 6U
• Create immersive sequences with 48 programmable hunters
• Flexible control with Sound to Light via microphone, Sound to Light via RCA and 24 DMX personalities

Specifications

• Power supply: 230V AC 50Hz 12V DC 500mA
• Power Consumption: 4W
• IP Rating: IP20
• Protection class: Class III
• Programs: 48 programmable trackers, 12 scenes
• DMX channels: Output 24
• DMX output: 1 x 3-pole XLR (F) 3-pole mounting version
• Mains connection: Mains input Coaxial power connector (M) Power cord with AC adapter (supplied)
• Control: Sound to light via microphone, Sound to light via RCA (f) assembly version, DMX
• Housing colour: Black
• Control elements: DMX polarity selector, power switch
• Black colour
• Mounting depth: 80mm
• Housing design: (19") 48.3cm 6U rack installation
• Dimensions: 48.3cm (L) x 26.4cm (D) x 8.9cm (H)
• Weight: 4.3kg
