Hill Audio WMU-116-B UHF Single Headband Wireless Microphone

Single headband radio microphone at UHF frequencies 16 channels selectable in 6 groups, Diversity system.
1 year Warranty

Do you need help?

Contact our support team!

WMU-116-B UHF Single Headband Wireless Microphone

The WMU-116 Wireless Microphone is a professional system which offers maximum reception stability thanks to the Diversity function. The 16 available frequencies are arranged in groups of 3-4 presets, ensuring that interference-free channel combinations are immediately available. Frequency changes are rapid thanks to IR synchronization between receiver and transmitter, avoiding accidental changes by the user of the microphone. The large LCD display and intuitive settings make operation child's play. Both transmitters and receivers are built with rugged chassis. Transmitters use low power circuitry to extend battery life. Complete set of : transmitter, receiver, flesh colored headband microphone, black lavalier microphone, 19” rack fixing system, antenna extensions.

Characteristics

  • UHF wireless microphone, 863-865 MHz ISM band.
  • 16 selectable carrier presets, in 6 groups of interference-free combinations.
  • Fine-Tune mode with 0.025 MHz frequency grid (80 channels).
  • IR frequency synchronization between receiver and transmitters.
  • Maximum range as the crow flies 50m.

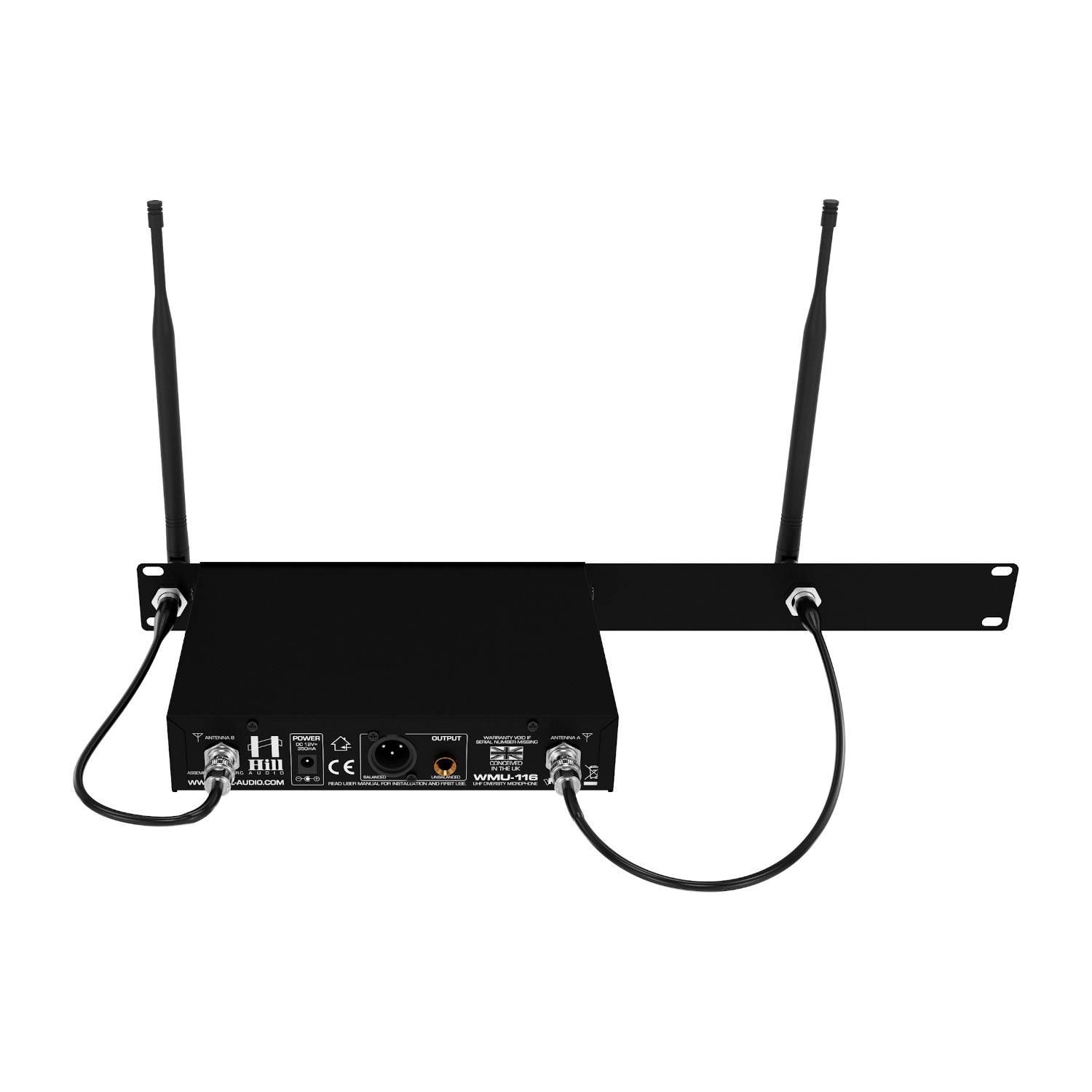

  • Receiver:
  • Large backlit LCD display with indications for Group / Channel / RF / AF.
  • Front volume control for receiver.
  • Removable dual rear antenna with diversity function (antenna).
  • XLR or 6.35mm TRS audio outputs.
  • 1U metal case with removable rack fins and front antenna kit.
  • Transmitter:
  • Bodypack type (WMU-116TB) in shockproof plastic case, with backlit LCD display and 3-pin Mini XLR input.
  • Flesh colored headband included. Lavalier microphone included.
  • Transmitters powered by 2xAA batteries (10 hours operation).
  • Technical specifications

    • Frequency Response: 60Hz-18kHz
    • Signal/Noise: >105dB
    • AC IN: AC220-250V~50Hz
    • Dimensions of the receiver WxHxD: 210 × 44 x 195 mm
    • Weight: 0.95kg
    • Bodypack dimensions: 83 x 61 x 23 mm
    • Weight: 75g
