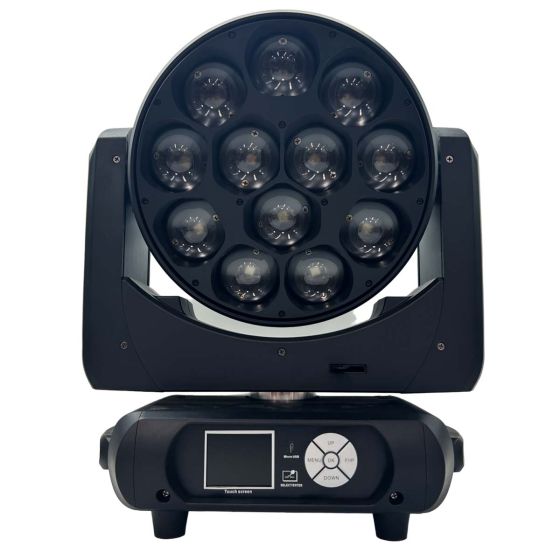

Atomic Pro Lotus Zoom 1240 testa mobile RGBW

Moving head 12 x 40W LEDs

The Atomic Pro Lotus Zoom 1240 moving head is a very powerful compact motorized wash light. The lighting fixture, in fact, is equipped with 12 x 40W 4-in-1 RGBW color LEDs .

The revised optical system allows uniform mixing across the entire color range. Another important detail is the zoom, linear from 4.5 to 45° , very precise and accurate.
Even the speed of the Pan and Tilt motors is a fact that should not be underestimated, Atomic Pro Lotus Zoom 1240 completes 540° pan in 1.8 seconds and 270° tilt in 0.9 seconds.

Features AtomicPro Lotus Zoom 1240 led moving head

• Equipped with 12 x 40W LEDs
• 3 individually controllable LED Rings
• QCL color mixture system 4 LEDs in 1 RGBW + CTC
• DMX512, Master Slave, Auto Mode and Sound Control operating modes.
• 11/17/18/25 DMX channels required.
• Practical control panel with 2” LCD display
• Linear zoom 9°- 44° degrees.
• White balance adjustment
• In and Out DMX 3pin and 5pin XLR Cannon connectors
• Powercon In/Out power connectors
• Omega brackets for suspended installation included
• 1m DMX cable included.
• Powercon power cable included

Technical specifications AtomicPro Lotus Zoom 1240

• Power supply: 100-250V, 50/60Hz
• Consumption: 600W
• Led type: High Power RGBW OSRAM
• Led quantity: 7
• Led power: 40W
• Required DMX Channels: 11/17/18/25 channels
• Insulation degree: IP20 (indoor)
• Zoom: 4.5° - 45°
• Pan / Tilt: 540° / 270°
• Color temperature : 2800K-8500K
• Cooling: silent automatic fans
• Power connections: Powercon IN/OUT
• Control connections: DMX IN/out 3 and 5 poles
• Dimensions: 338(L) x 395(W) x 470(H) mm
• Weight: 14.5Kg
