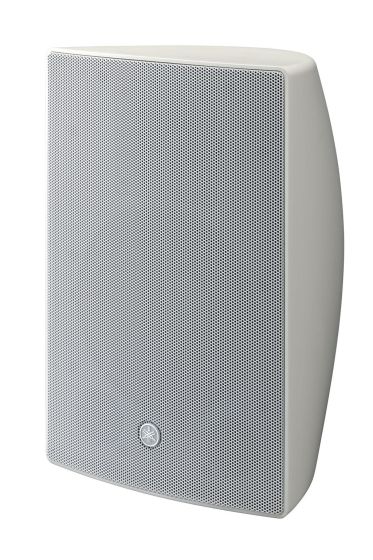

Passive speaker Yanaha,VXS 8", white, 2x

The VXS8 Series can be combined with two subwoofer models allowing you to choose the optimal configuration for a particular application and, if necessary. The VXS8 enclosures are equipped with internal transformers that allow you to operate both with low impedances and with high impedances, simply by changing the tap on the back of the speaker. IP45 protection ensures trouble-free use in outdoor applications.
1 year Warranty

Do you need help?

Contact our support team!

Yamaha VXS8 passive installation speaker

Loudspeakers with adaptable mounting surface The VXS8 Series can be combined with two models of subwoofers allowing you to choose the optimal configuration for a particular application and, if necessary. The VXS8 enclosures are equipped with internal transformers that allow you to operate with both low impedances with high impedances, simply by changing the tap on the back of the speaker. IP45 protection ensures trouble-free use in outdoor applications.

Flexible Mounting for Easier Setups The VXS8 loudspeakers come with installation supports. The mounting angles can be easily adjusted thanks to the guide rails located inside the supports. Additionally, the stand base allows the VXS8 loudspeakers to be mounted either on the wall or on the ceiling, without the need to prepare a different set of stands.

Loudspeaker design Numerous aspects of loudspeaker design affect the functionality and aesthetic characteristics of their structure, significantly modifying the sound quality and loudspeaker performance. The hexagonal design of the speaker grille improves clarity by increasing the degree of openness. Similarly, the tapered surface curves of the simple yet sophisticated design allow the speakers to be mounted close to the wall while still retaining their function.

  • Speaker type: 2-way bass reflex
  • Frequency range: 51Hz- 20kHz
  • Nominal Coverage: H100°V100°
  • Components: LF 8" cone diameter, HF 1”
  • Crossovers: 2.8KHz
  • Output power: NOISE 90W, PGM 180W
  • Impedance:
  • 100V power: 60W (170Ω), 30W (330Ω), 15W (670kΩ)
  • 70V power: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670kΩ)
  • SPL: Sensitivity (1W; 1m on axis) 91dB SPL ; Peak (Calculated) 117dB SPL
  • I/O connections: 1x Euroblock 4P
  • Degree of protection: IP45
  • Mounting hardware: wall/ceiling bracket
  • Dimensions: W 278mm H 430mm D 239mm
  • Net weight: 8.2kg
